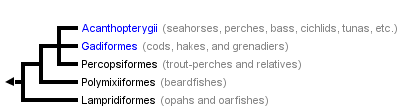

This tree diagram shows the relationships between several groups of organisms.

The root of the current tree connects the organisms featured in this tree to their containing group and the rest of the Tree of Life. The basal branching point in the tree represents the ancestor of the other groups in the tree. This ancestor diversified over time into several descendent subgroups, which are represented as internal nodes and terminal taxa to the right.

example of a tree diagram

You can click on the root to travel down the Tree of Life all the way to the root of all Life, and you can click on the names of descendent subgroups to travel up the Tree of Life all the way to individual species.

For more information on ToL tree formatting, please see Interpreting the Tree or Classification. To learn more about phylogenetic trees, please visit our Phylogenetic Biology pages.

close box
Containing group: Teleostei

Introduction

Acanthomorpha, the spiny-rayed fishes, are the crown group of the Teleostei. Encompassing approximately 16,000 species in over 300 families (including the more familiar cods, tunas, flounders, basses, and perches as well as the exotic oarfishes, stonefishes, seahorses, flatfishes, puffers and much, much more), they comprise over 60% of extant teleosts and about one-third of all living vertebrates. Acanthomorphs exhibit staggering diversity in adult and larval body form, skeletal and soft anatomy, size, habitat, physiology, and behavior. They are found in most aquatic habitats available to fishes, from the abyssal plains of the ocean basins to mountain streams, desert springs, and caves and range in size from some of the longest (17 meters, the lampridiform, Regalecus glesne) and most massive (>3000 kilograms, the tetraodontiform, Mola mola) bony fishes to the smallest of all vertebrates (7-8mm, the gobioid, Schindleria) (Stiassny, et al., 2004; Nelson, 2006).

Characteristics

Synapomorphies

  1. True dorsal and anal fin spines present (Johnson and Patterson, 1993); there are notable exceptions, e.g., gadiforms, most lampridiforms, various perciforms).
  2. Median chondrified rostral cartilage present and strongly bound to premaxillary ascending process via well-developed rostro-premaxillary ligament (Hartel and Stiassny, 1986; Stiassny, 1986; Johnson and Patterson, 1993).
  3. Median caudal cartilages absent (Fujita, 1990; Johnson and Patterson, 1993).
  4. Anterior and medial infracarinales separate (Stiassny, 1993; Johnson and Patterson, 1993).
  5. Dorsal limb of posttemporal firmly bound to exoccipital (Stiassny, 1986; Johnson and Patterson, 1993)
  6. Medial pelvic processes ossified distally (Johnson and Patterson, 1993).
  7. First centrum with anterior surface bearing distinct facets that articulate with the exoccipital condyles (Rosen, 1985, Johnson and Patterson, 1993).

Discussion of Phylogenetic Relationships

The Acanthomorpha originated with Rosen's (1973) seminal paper on interrelationships of higher euteleosts. It comprised two putatively monophyletic clades, Paracanthopterygii and Acanthopterygii and was based on five ambiguously distributed characters. The monophyly of Rosen's Acanthomorpha, with Myctophiformes as their sister group, has subsequently been corroborated with morphological characters by Stiassny (1986), Hartel and Stiassny (1986), and Johnson and Patterson (1993), whereas monophyly of the two subgroups has been refuted (see discussion on Acanthopterygii page).

Molecular studies have challenged acanthomorph monophyly only in tending to place myctophiforms as the sister group of one or more of the most basal acanthomorph clades (e.g., Chen et al. 2003, Miya et al., 2003, 2005), for which there is no morphological support. The most extensive review and defense of acanthomorph monophyly was that of Johnson and Patterson (1993), emanating from their attempt to define the largest and most diverse acanthomorph assemblage, Percomorpha, in which they reviewed and evaluated support for previous hypotheses and proposed a morphology-based hypothesis of acanthomorph relationships. In so doing, they identified seven evolutionary innovations that unite the Acanthomorpha. Perhaps the most convincing of these are the presence in the dorsal and anal fins of true fin spines, and a single median chondrified rostral cartilage associated with specific rostral ligaments (Hartel and Stiassny, 1985; Stiassny, 1986) that permit the jaws to be greatly protruded while feeding. These two "key innovations" are also arguably those that have facilitated the greatest diversification in the evolution of this immense clade. Johnson and Patterson (1993) proposed a phylogeny for six basal acanthomorph groups leading sequentially to a newly defined Percomorpha.

References

Chen, W.-J., C., Bonillo, and G. Lecointre. 2003. Repeatability of clades as a criterion of reliability: a case study for molecular phylogeny of Acanthomorpha (Teleostei) with larger number of taxa. Mol. Phylo. Evol. 26(2):262-288.

Fujita, K. 1990, The caudal skeleton of teleostean fishes: Tokyo: Tokai University Press, xiii + 897 pp.

Hartel, K. E., and M. L. J. Stiassny. 1986. The identification of larval Parasudis (Teleostei: Chloropthalmidae); with notes on the anatomy and relationships of aulopiform fishes. Breviora 487:1-23.

Johnson, G. D. and C. Patterson. 1993. Percomorph phylogeny: A survey of acanthomorph characters and a new proposal. Bull. Mar. Sci. 52, 554-626.

Miya, M., H. Takeshima, H. Endo, N. B. Ishiguro, J. G. Inous, T. Mukai, T. P. Satoh, M. Yamagucki, A. Kawaguchi, K. Mabuchi, S. M. Shirai, and M. Nishida. 2003. Major patterns of higher teleost phylogenies: a new perspective based on 100 complete mitochondrial DNA sequences. Mol. Phylo. Evol. 26:121-138.

Miya, M., Satoh, T.P., and Nishida. 2005. The phylogenetic position of toadfishes (Order Batrachoidiformes)in the higher ray-finned fishes as inferred from partitioned Bayesian analysis of 102 whole mitochondrial sequences. Biol. Jour. Linn. Soc. 85:289-306

Nelson, J. S. 2006. Fishes of the World, 4th Edition. Wiley-Interscience, New York.

Rosen, D. E. 1973. Interrelationships of higher euteleostean fishes. In Interrelationships of Fishes. (Greenwood, P. H., Miles, S., Patterson, C. eds), pp 397-513. J. Linn. Soc. (London) 53 Supplement 1. Academic Press, New York, New York.

Rosen, D. E. 1985. An essay on euteleostean classification. Amer. Mus. Novit. 2827:1-57.

Stiassny, M. L. J. 1986. The limits and relationships of the acanthomorph fishes. J. Zool. London (B) 1:411-460.

Stiassny, M. L. J., Wiley, E. O., Johnson, G. D. & deCaravalho, M. R. 2004. Gnathostome fishes. – In: Assembling The Tree of Life. ( J. Cracraft, ed.). Oxford University Press: 410-429.

Title Illustrations
Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window
Scientific Name Chilomycterus antennatus (Cuvier) (Diodontidae)
Location Cayman Islands, Caribbean
Specimen Condition Live Specimen
Identified By Jeff Leis, Ichthyology, Australian Museum
Copyright © Greg and Marybeth Dimijian
Smallmouth Bass
Scientific Name Micropterus dolomieu
Comments Smallmouth Bass
Creator Eric Engbretson
Source Collection U.S. Fish and Wildlife Service Online Digital Media Library
About This Page


Smithsonian Institution, Washington, D. C., USA

E. 0. Wiley
University of Kansas, Lawrence, Kansas, USA

Correspondence regarding this page should be directed to G. David Johnson at and E. 0. Wiley at

All Rights Reserved.

Citing this page:

Johnson, G. David and E. 0. Wiley. 2007. Acanthomorpha. Version 09 January 2007 (under construction). http://tolweb.org/Acanthomorpha/15088/2007.01.09 in The Tree of Life Web Project, http://tolweb.org/
